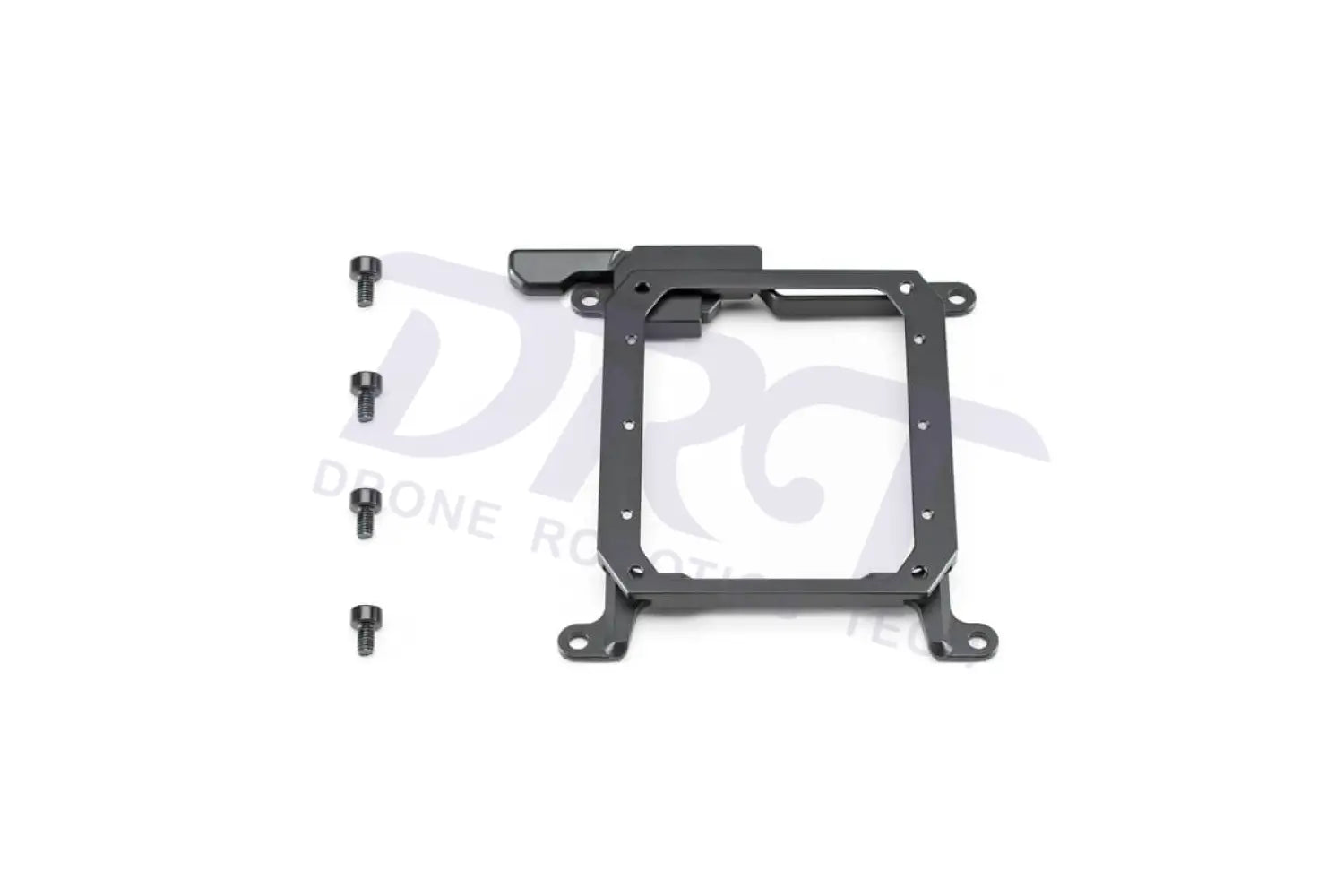

DJI PSDK Mounting Bracket for Matrice 30 Series

The PSDK Mounting Bracket can attach payloads onto the Matrice 30 serises platform, and different types of PSDK payloads can be quickly removed and replaced. The PSDK Mounting Bracket consists of two parts, fixed bracket (attach on the flight platform) and payload bracket (installed on the PSDK payload), the bracket is designed with dual slide rails, which can be locked by pushing the PSDK payload, and unlocked by pressing a button.The material is made of aluminum alloy, which not only ensures that the structure is light enough, but also provides a safety guarantee for the flight with payload.

One button to unlock, quickly replace different types of PSDK loads.

Please install according to the instructions in he User Manual before use. Fore more information, please visit https://developer.dji.com.

The bracket will be worn after long-term use, please replace it in time.

Fixed Bracket × 1

Payload Bracket x 1

Screw A(M 1.6) x 6

Screw B(M 2.0) x 4

Screw C(M 3.0) x 4

Weight: 16.5g (including screw weight)

Dimensions: 79.6 x 79.3 x 7.9mm

Matrice 30 Series
