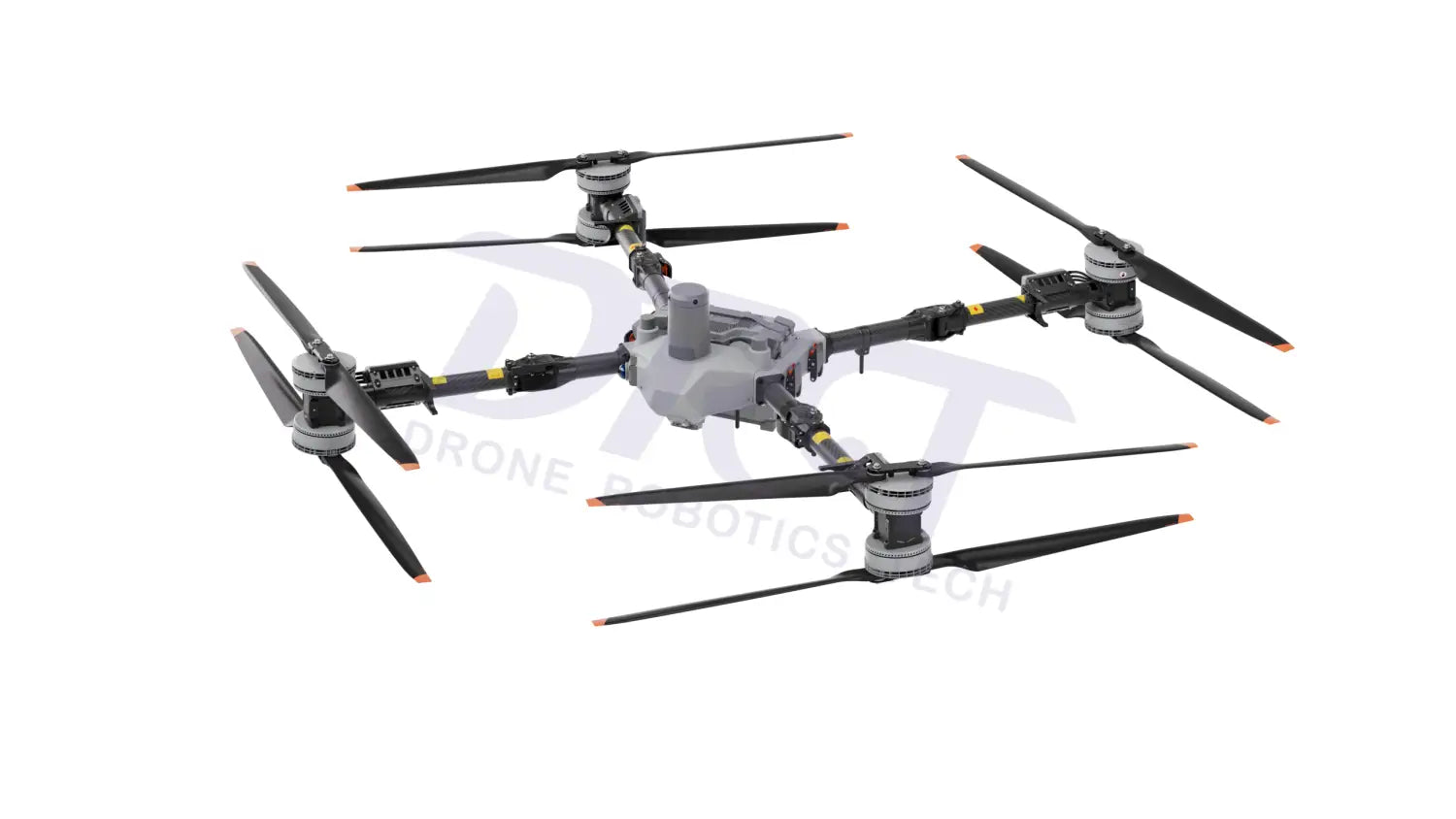

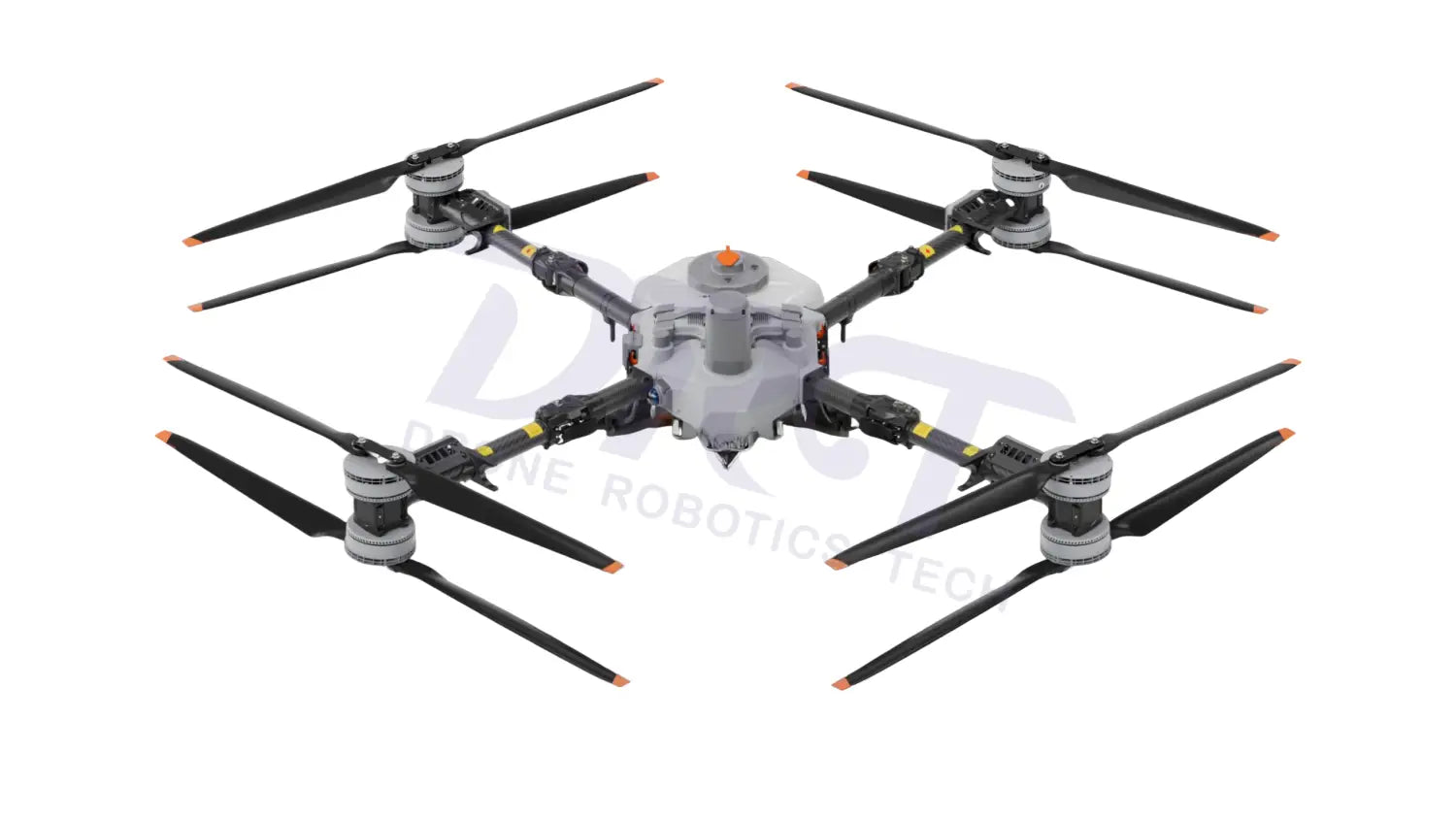

DJI Agras T100 Air Frame
DJI Agras T100 Air Frame
Regular price
$21,818.00 USD
Regular price
Sale price
$21,818.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
DJI AGRAS T100 vs T50 vs T25
Introduction
The DJI Agras T100 is a next-generation agricultural drone designed to revolutionize large-scale farm operations. This guide breaks down the key features of the T100 and compares it with the T25 and T50 models to help you make an informed decision.
Flight Performance & Efficiency
| Feature | T100 | T50 | T25 |
|---|---|---|---|
| Empty Weight | 77 kg (spraying w/ 4 nozzles) | 39.5 kg | 21.2 kg |
| Max Takeoff Weight | 177 kg (spraying) | 101 kg | 54 kg |
| Max Payload (Spraying) | 100 kg | 40 kg | 20 kg |
| Max Payload (Spreading) | 100 kg | 50 kg | 25 kg |
| Diagonal Wheelbase | 2330 mm | 2120 mm | 1914 mm |
| Dimensions (Unfolded) | 3220 × 3224 × 975 mm | 2800 × 2342 × 790 mm | 2670 × 2580 × 750 mm |
| Flight Radius | 2 km | 2 km | 2 km |
| Flight Time (No Payload) | ~23 min | ~20 min | ~20 min |
| Flight Time (Full Payload) | ~9–13 min | ~10–15 min | ~10–15 min |
| Max Operating Speed | 10 m/s (spraying mode) | 7 m/s | 7 m/s |
| Max Wind Resistance | <6 m/s | <8 m/s | <8 m/s |
| Hovering Accuracy (RTK) | ±10 cm (H/V) | ±10 cm (H/V) | ±10 cm (H/V) |
| Propeller Size | 62 in × 8 pairs | 54 in × 4 pairs | 54 in × 4 pairs |
| Motor Specs | 155 × 16 mm, KV 60 | N/A | N/A |
| Max Efficiency (Spraying) | ~22 ha/hr | ~16 ha/hr | ~12 ha/hr |
Spraying & Spreading Capabilities
| Feature | T100 | T50 | T25 |
|---|---|---|---|
| Spray Tank Volume | 100 L | 40 L | 20 L |
| Spraying Payload | 100 kg | 40 kg | 20 kg |
| Sprinkler Options | 2 (standard) / 4 (optional) | 2 (standard) / 4 (optional) | 2 (standard) / 4 (optional) |
| Droplet Size | 50–500 μm | 50–500 μm | 50–500 μm |
| Effective Spray Width | 5–11 m | 5–10 m | 4–7 m |
| Max Flow Rate | 30 L/min (2 nozzles) / 40 L/min (4 nozzles) | 16 L/min (2) / 24 L/min (4) | 16 L/min (2) / 24 L/min (4) |
| Pump Type | Impeller Pump (Magnetic Drive) x2 | Impeller Pump x2 | Impeller Pump x2 |
| Spray Tank Material | HDPE | HDPE | HDPE |
| Spreading Tank Volume | 150 L | 75 L | 35 L |
| Spreading Payload | 100 kg | 50 kg | 25 kg |
| Max Discharge Rate | 400 kg/min | 108 kg/min | 108 kg/min |
| Spreader Type | Centrifugal Disc + Screw Feeder | Centrifugal Disc | Centrifugal Disc |
| Compatible Granule Size | 0.5–10 mm | 0.5–10 mm | 0.5–10 mm |
| Effective Spread Width | 3–10 m | ~8 m | ~5–8 m |
Heavy-Lifting Mode (T100 Only)
| Feature | Agras T25 | Agras T50 | Agras T100 |
|---|---|---|---|
| Lifting Mode | Not Available | Not Available | ✅ Included (Winch System) |
| Max Lifting Capacity | — | — | Up to 100 kg (recommended ≤ 85 kg for winch ops) |
| Lifting Cable Length | — | — | 10 m (standard), 10–15 m recommended |
| Applications | — | — | • Remote supply transport • Irrigation equipment delivery • Firefighting (water bucket deployment) |
Power and Battery Efficiency
| Feature | Agras T25 | Agras T50 | Agras T100 |
|---|---|---|---|
| Battery Model | DB800 | DB1560 | DB2160 |
| Battery Capacity | 25,000 mAh | 30,000 mAh | 41,000 mAh |
| Nominal Voltage | 52.22 V | 51.8 V | 52 V |
| Energy (Approx.) | ~1300 Wh | ~1550 Wh | ~2130 Wh |
| Battery Weight | ~9.5 kg | ~13.2 kg | 14.7 ± 0.3 kg |
| Battery Type | Li-ion | Li-ion | Li-ion |
| Swappable Battery | ✅ Yes | ✅ Yes | ✅ Yes (Supports Dual Battery for Lifting) |
| Charging System | C8000 + D9000i Generator | D12000iE Generator | D12000iE Generator |
| Max Charging Power | 7200 W | 12,000 W | 12,000 W |
| Charging Time | ~9–12 min | ~9–12 min | ~9–12 min |
| Flight Time (No Payload) | ~20 min | ~20 min | ~23 min |
| Flight Time (Full Payload) | ~10–15 min | ~10–15 min | ~9–13 min |
Autonomy & Obstacle Avoidance
| Feature | DJI T25 | DJI T50 | DJI T100 |
|---|---|---|---|
| 360° Obstacle Sensing | ✅ Dual Radar + Binocular Vision | ✅ Dual Radar + Binocular Vision | ✅ Dual Radar + Binocular Vision (Enhanced) |
| Sensing Range | Up to 30 m | Up to 30 m | Up to 60 m (Lidar-enhanced) |
| Obstacle Detection | Detects front/rear obstacles | Detects front/rear obstacles | Detects fine objects (e.g., wires, branches) |
| Terrain Following | ✅ Yes | ✅ Yes | ✅ Yes |
| Lidar Scanner | ❌ No | ❌ No | ✅ Built-in spinning Lidar (for 3D mapping) |
| AR Display System | ❌ Not supported | ❌ Not supported | ✅ Live 3D visualization via Goggles or RC screen |
| Advanced Visualization | ❌ No | ❌ No | ✅ Shows path, landing points, hazard overlays |
| Millimeter Wave Radar (EIRP) | ❌ No | ✅ < 20 dBm | ✅ < 20 dBm |
| Laser Radar FOV | — | — | Vertical 272°, Horizontal 60° |
| Front Radar FOV | 360° H / ±45° V | 360° H / ±45° V | 360° H / ±45° V |
| Rear/Down Radar FOV | ±45° / ±22.5° | ±45° / ±22.5° | ±45° / ±22.5° |
| Quad Vision System | ✅ 360° H / 180° V | ✅ | ✅ |
| FPV Camera FOV | ±86° H / 108° V | ✅ | ✅ |
| Safe Obstacle Avoidance Speed | ≤ 7 m/s | ≤ 10 m/s | ≤ 13.8 m/s |
| Effective Avoidance Height | ≥ 1.0 m | ≥ 1.2 m | ≥ 1.5 m |
| Operating Environment | Lighted, clear surroundings | Same | Same |
| Operating Temperature | 0 °C to 40 °C | 0 °C to 40 °C | 0 °C to 40 °C |
Remote Controller Experience![]()
| Feature | DJI T25 | DJI T50 | DJI T100 |
|---|---|---|---|
| Model | RM700B | RM700B | TKPL 2 (RC Plus 2) |
| Screen Size | 7.02″ LCD | 7.02″ LCD | 7.00″ LCD |
| Resolution | 1920 × 1200 | 1920 × 1200 | 1920 × 1200 |
| Brightness | 1200 cd/m² | 1200 cd/m² | 1400 cd/m² |
| Operating Temperature | -20°C to 50°C | -20°C to 50°C | -20°C to 50°C |
| Storage Temperature | -30°C to 45°C (varies by time) | Same | Same |
| Video Transmission | O4 (~7 km FCC) | O4 (~7 km FCC) | O4 (~7 km FCC) |
| Wi-Fi Protocol | Wi-Fi 6 | Wi-Fi 6 | — |
| Bluetooth | Bluetooth 5.1 | Bluetooth 5.1 | — |
| GNSS | GPS + Galileo + BeiDou | Same | Same |
| 4G Connectivity | ✅ Drone & Controller | ✅ Drone & Controller | ✅ Drone & Controller |
| FPV Camera Support | Standard FPV | Standard FPV | HD FPV with gimbal + zoom |
| Autonomous Functions | One-tap takeoff & mission | Same | Same |
| Mission Apps | DJI Agras / Pilot 2 | Same | Same |
| Internal Battery Runtime | 3h 18m | 3h 18m | 3.8 hours |
| External Battery Runtime | 2h 42m | 2h 42m | 3.2 hours |
| Charging Type | USB-C, 65W (20V) | Same | Same |
| Charging Time | ~2 hours (internal or combo) | Same | Same |
| Charging Temperature | 5°C to 40°C | Same | Same |
Handling & Transport Considerations
| Feature | DJI T25 | DJI T50 | DJI T100 |
|---|---|---|---|
| Folding Mechanism | ✅ Foldable arms & props | ✅ Foldable arms & props | ✅ Foldable arms & props |
| One-Person Setup | ✅ Easy | ✅ Moderate effort | 🚫 Two-person recommended |
| Transport Mode Dimensions | 1105 × 1265 × 975 mm | 1125 × 1100 × 685 mm | 1105 × 1265 × 975 mm |
| Unfolded Dimensions | 2670 × 2580 × 750 mm | 2800 × 2342 × 790 mm | 3220 × 3224 × 975 mm |
| Empty Aircraft Weight | ~21.2 kg | ~39.5 kg | ~77 kg (spraying config) |
| Max Takeoff Weight | 54 kg | 101 kg | 177 kg |
| Vehicle Transport | ✅ Fits in pickup bed | ✅ Pickup/SUV | 🚚 Truck or trailer recommended |
| Lift Handles / Design | ✅ Integrated grips | ✅ Integrated grips | ✅ Dual-side lifting zones |
| Setup Time | <5 minutes | ~5–8 minutes | 8–10 minutes (2 people) |
| Field Deployment Suitability | Excellent for narrow areas, orchards | Good for medium fields | Ideal for large, open fields |
Smart Ecosystem & DJI SmartFarm
| Feature | DJI T25 | DJI T50 | DJI T100 |
|---|---|---|---|
| DJI SmartFarm Integration | ✅ Supported | ✅ Supported | ✅ Supported |
| Flight Data Sync | ✅ Yes | ✅ Yes | ✅ Yes |
| Spray Reports | ✅ Generates flight/spray reports | ✅ Generates flight/spray reports | ✅ Generates flight/spray reports |
| Crop Management Tools | ✅ Cloud access to SmartFarm features | ✅ Cloud access to SmartFarm features | ✅ Cloud access + enhanced AI compatibility |
| AI & Precision Ag Support | ❌ Not included | ❌ Not included | ✅ Ready for DJI AI features & base station links |
| Target User Benefit | Small-scale record keeping | Mid-scale crop analytics | Advanced analytics, AI diagnostics, optimization |
Choosing the Right Drone
| Model | Best For | Key Strengths | Ideal User |
|---|---|---|---|
| DJI T25 | Small-scale farms, orchards, research plots | ✅ Lightweight & compact✅ Fast setup✅ Solo operation capable | Growers managing multiple small fields, demo sites, universities, or tight terrain applications |
| DJI T50 | Mid-sized operations, contract sprayers, co-ops | ✅ Balanced capacity vs. portability✅ Higher efficiency✅ Easy to transport | Farms with medium-sized acreage, or service providers covering various regions |
| DJI T100 | Large-scale commercial farms, agricultural service providers | ✅ Maximum spray & spread payload✅ AI-ready + Lidar✅ Industrial-grade durability | Professional users needing precision, heavy-duty spraying, or future expansion into AI, mapping, and lifting tasks |
The DJI Agras T100 offers unmatched spraying capacity, speed, and adjustability—ideal for high-demand agricultural operations needing speed and precision. The T50 balances size and capacity, while the T25 remains the go-to for compact and cost-sensitive jobs.
